Overview

Campus Details

42	ACRE CAMPUS
1.3	MILLION SQ. FT.
11	BUILDINGS TOTAL
9	3-STORY BULDINGS 88,000-121,000 SQ. FT.
2	4-STORY BULDINGS 140,000-162,000 SQ. FT.
1	FREE-STANDING AMENITY BUILDING
35,000 – 40,000 SQ. FT. TYPICAL FLOOR PLATE

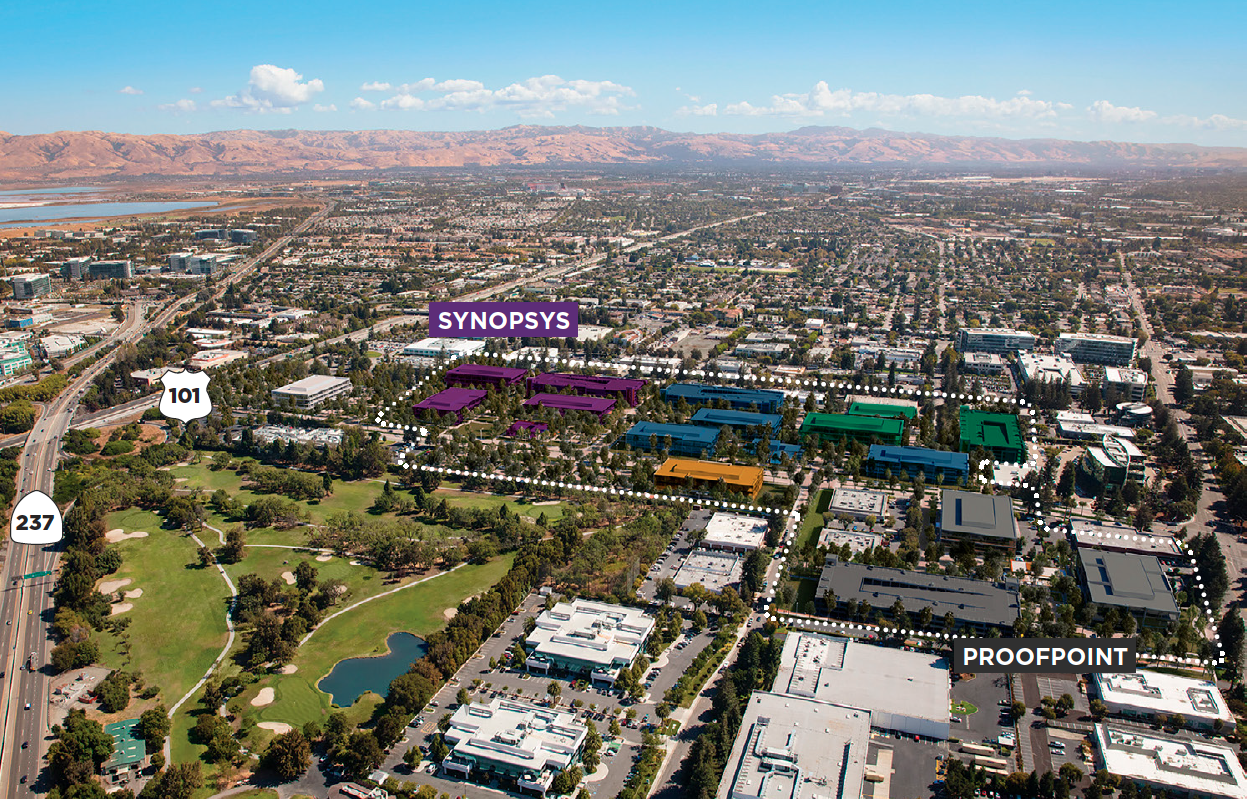

Your Campus Within-A-Campus

The campus is broken up into unique districts, allowing you to create a private, secure and independent campus-within-acampus that brings your teams into one consolidated space.

Enjoy onsite amenities that make work-life integration seamless and efficient while reaping the benefits of Pathline Park’s innovative business community.

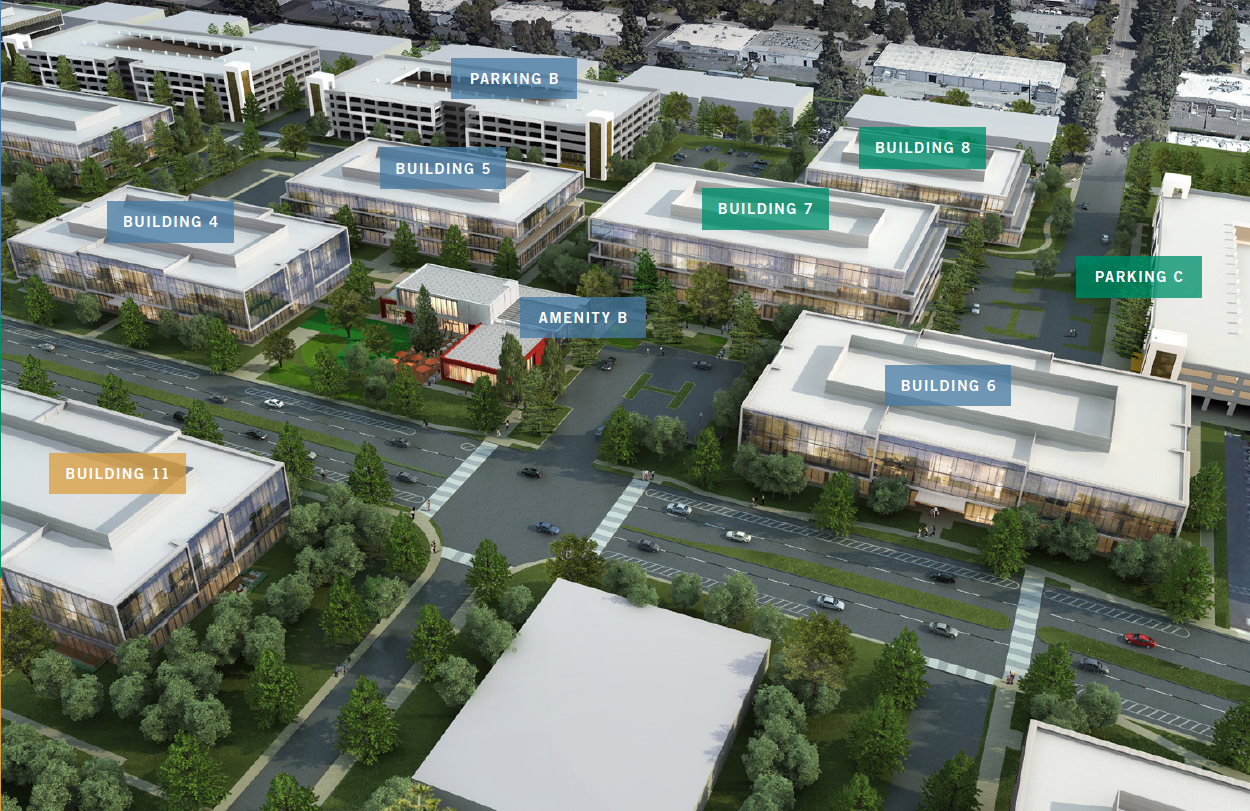

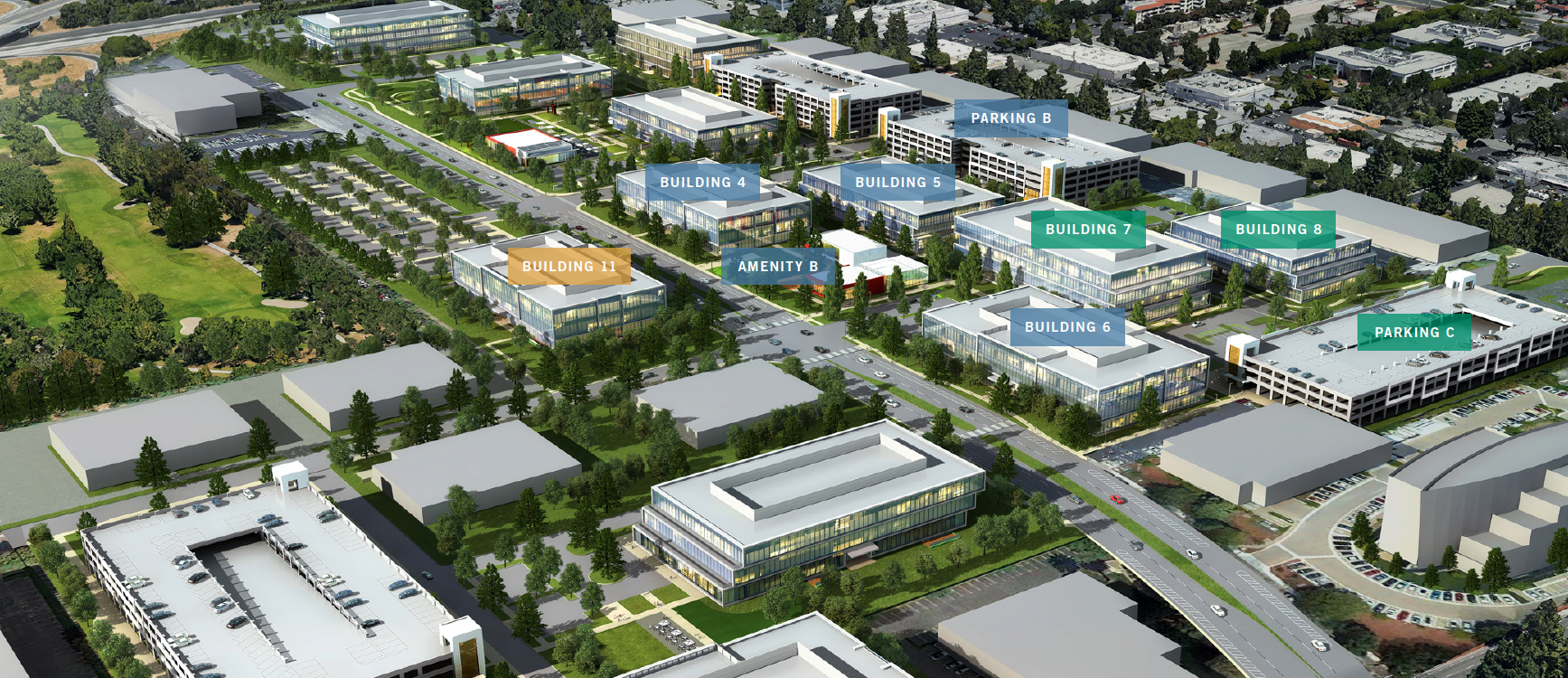

UNIQUE DISTRICTS OFFER A PRIVATE CAMPUS FEEL

BUILDINGS 4, 5 & 6

AMENITY B • PARKING B

Total 349,000 Sq. Ft.
Completion Oct. 2019
Building 4 105,000 Sq. Ft.
Building 5 105,000 Sq. Ft.
Building 6 121,000 Sq. Ft.
Amenity B 18,000 Sq. Ft.

BUILDINGS 7 & 8

PARKING C

Total 349,000 Sq. Ft.
Completion Oct. 2019
Building 4 105,000 Sq. Ft.
Building 5 105,000 Sq. Ft.

BUILDINGS 7 & 8

PARKING C

Total 349,000 Sq. Ft.
Completion Oct. 2019
Building 4 105,000 Sq. Ft.

Building Details

AN ARCHITECTURALLY ICONIC BUSINESS COMMUNITY

BUILDING SPECIFICATIONS

Net Site Area ±42 Acres
Amenity Building Rentable Area: 18,000 RSF

OVERALL DIMENSIONS

A combination of three and four-story buildings
88,050 – 161,700 RSF FLOOR / FLOOR HEIGHTS
First floor: 16'
Second floor: 14'-6"
Top floor to roof: Varies; 14'-0" min. to 15’-9"
Typical tenant finished ceiling height: 10'-0"

ELEVATORS

Number of Cabs per Building: Three (3)
Type: Kone Monospace 700 Gearless
Traction MRL Speed: 350 feet per minute

BUILDING ENVELOPE

5' wide x 14'-6" high unitized curtain wall system with Duranar XL UC57638XL
Viracon VRE30-38 insulated glazing unit with 4.5" x 7" extruded aluminum profiles

GROUND FLOOR ENTRY AREAS

Starphire glazed balanced pivot doors with stainless steel hardware with panic device and closures

MAIN LOBBY

Long Grain #4 stainless steel elevator doors and frames

PARKING

Parking Ratio: 3.3/1,000
Electric Vehicle Charging Stations

LEED

Targeting Gold certification level

HEATING, VENTILATION AND AIR CONDITIONING

Two high efficiency, rooftop mounted packaged VAV AC units per building each sized at 90-130 tons depending on building
Outdoor condensing boiler plant consisting of two condensing boilers and two parallel, variable speed controlled, primary hot water pumps on the roof

FIRE PROTECTION

Automatic Fire Sprinkler Systems (in accordance with NFPA 13, City of Sunnyvale Fire Marshal)

OUTDOOR PLAZA & BUILDING EDGES

Groves of redwoods will complement mature existing redwoods to be preserved
A mix of regionally-relevant canopy and understory trees will provide seasonal interest and shade
Bicycle lockers and bicycle racks on-site

ELECTRICAL SYSTEM

Electrical service via underground utility lines brought to the site by PG&E
Underground conduit infrastructure shall extend to pad mounted PG&E transformers located on-site adjacent to each building

Buildings utilization voltage will be 277/480 volt, 3-phase, 4-wire with ampacity as required to accommodate square footages and loads
Electrical service sizes are between 2,000 amps – 2,500 amps

TELECOMMUNICATION SYSTEM

Service entrance shall consist of four (4) 4” underground conduits, one from AT&T, one from Comcast, one combined for other service provider’s and one spare.
Telecommunication rooms shall be provided stacked on each of the upper floors of the building, level 2 and up, with 4” conduit sleeves through the floor to interconnect.
